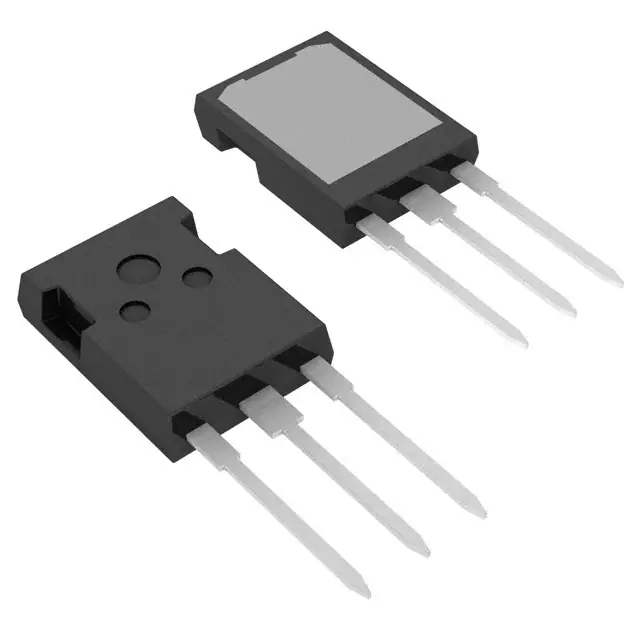

IXYX140N90C3
IXYX140N90C3
- Available: 150
- Manufacturer: IXYS
- Part Number: IXYX140N90C3
- Detailed Description:IGBT - 900 V 310 A 1630 W Through Hole PLUS247™-3
- Category:Discrete Semiconductor Products | Transistors - IGBTs - Single
- RoHS Status： ROHS Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
26.1720
10+
24.6017
100+
23.2931
1000+
21.9845
10000+
20.6759
Considering price fluctuations, this price is only for reference. Please send RFQ to info@aceera.net to get the best price, thank you.
| Manufacturer | IXYS |
|---|---|
| Series | GenX3™, XPT™ |
| Package | Tube |
| Standard Package | 30 |
| Product Status | Active |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 900 V |
| Current - Collector (Ic) (Max) | 310 A |
| Current - Collector Pulsed (Icm) | 840 A |
| Vce(on) (Max) @ Vge, Ic | 2.7V @ 15V | 140A |
| Power - Max | 1630 W |
| Switching Energy | 4.3mJ (on) | 4mJ (off) |
| Input Type | Standard |
| Gate Charge | 330 nC |
| Td (on/off) @ 25°C | 40ns/145ns |
| Test Condition | 450V | 100A | 1Ohm | 15V |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 Variant |
| Supplier Device Package | PLUS247™-3 |
| Base Product Number | IXYX140 |
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
