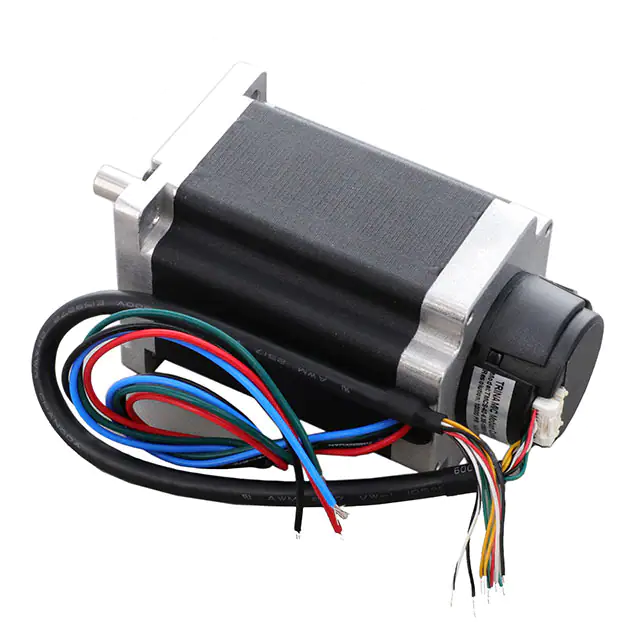

QSH6018-86-90-300-10K
QSH6018-86-90-300-10K
- Available: 1
- Manufacturer: Trinamic Motion Control GmbH
- Part Number: QSH6018-86-90-300-10K
- Detailed Description:Bipolar Stepper Motor Hybrid Frame Size 24 200.0 Step 9 A 2.1VDC
- Category:Motors, Actuators, Solenoids and Drivers | Stepper Motors
- RoHS Status： ROHS Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
325.9080
10+
306.3535
100+
290.0581
1000+
273.7627
10000+
257.4673
Considering price fluctuations, this price is only for reference. Please send RFQ to info@aceera.net to get the best price, thank you.
| Manufacturer | Trinamic Motion Control GmbH |
|---|---|
| Series | QMot QSH6018 |
| Package | Bulk |
| Standard Package | 1 |
| Product Status | Active |
| Type | Hybrid |
| Coil Type | Bipolar |
| Voltage - Rated | 2.1VDC |
| Current Rating (Amps) | 9 A |
| Steps per Revolution | 200 |
| Step Angle | 1.8° |
| Accuracy | ±5% |
| Torque - Holding (oz-in / mNm) | 424.93 / 3000 |
| Size / Dimension | Square - 2.362" x 2.362" (60.00mm x 60.00mm) |
| NEMA Frame Size | 24 |
| Diameter - Shaft | 0.315" (8.00mm) |
| Length - Shaft and Bearing | 0.945" (24.00mm) |
| Mounting Hole Spacing | 1.856" (47.14mm) |
| Termination Style | Wire Leads |
| Coil Resistance | 0.15 Ohms |
| Features | Flatted Shaft |
| Rotor Inertia | 840gcm² |
| Approval Agency | CE |
| Base Product Number | QSH6018 |
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8501.10.4040 |
