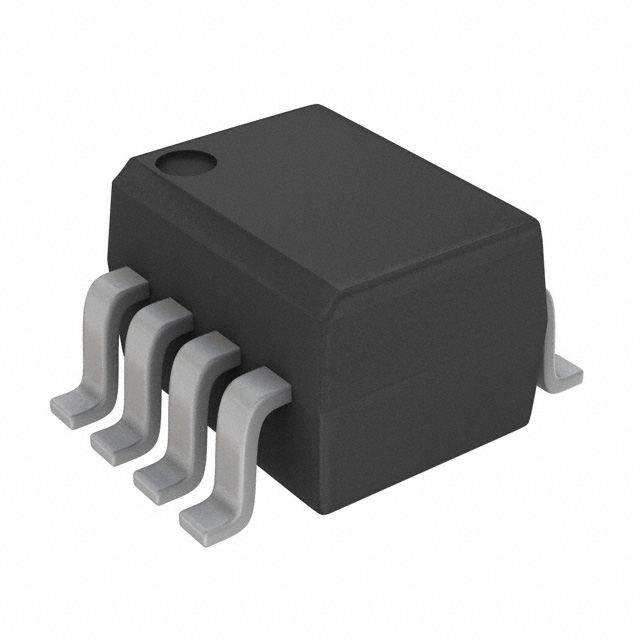

SFH6720T
SFH6720T
- Available: 0
- Manufacturer: Vishay Semiconductor Opto Division
- Part Number: SFH6720T
- Detailed Description:Logic Output Optoisolator 5MBd Push-Pull, Totem Pole 4000Vrms 1 Channel 1kV/µs CMTI 8-SOIC
- Category:Isolators | Logic Output Optoisolators
- RoHS Status： ROHS Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
0.0000
10+
0.0000
100+
0.0000
1000+
0.0000
10000+
0.0000
Considering price fluctuations, this price is only for reference. Please send RFQ to info@aceera.net to get the best price, thank you.
| Manufacturer | Vishay Semiconductor Opto Division |
|---|---|
| Series | - |
| Package | Tape & Reel (TR) | Cut Tape (CT) |
| Standard Package | 2000 |
| Product Status | Obsolete |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 4000Vrms |
| Common Mode Transient Immunity (Min) | 1kV/µs |
| Input Type | DC |
| Output Type | Push-Pull, Totem Pole |
| Current - Output / Channel | 25 mA |
| Data Rate | 5MBd |
| Propagation Delay tpLH / tpHL (Max) | 300ns, 300ns |
| Rise / Fall Time (Typ) | 40ns, 10ns |
| Voltage - Forward (Vf) (Typ) | 1.6V |
| Current - DC Forward (If) (Max) | 10mA |
| Voltage - Supply | 4.5V ~ 15V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | SFH6720 |
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.49.8000 |
